The T/LL70 series is a comprehensive range of vertical float level switches designed around the proven and reliable magnet and reed switch principle.
Comprising many build variants, the T/LL70 is customised to each application by means of materials, level adjustment, connection, thread and reed contact specification etc. The data below gives some sense of the numerous combinations, but some interdependency exists with regard to the materials of construction.
SPECIFICATION
Liquid Types:
Liquids compatible with the construction materials;
typically diesel, kerosene, petrol, water.
Materials:
Typical Float Switch Builds:
| A | B | C | D | |
| Header | Brass | Brass | 316 SS | uPVC |
| Stem | Brass | Brass | 316 SS | uPVC |
| Float | PP | Nitrophyl | 316 SS | PP |
| Float Stops | 304 SS | 304 SS | 304 SS | uPVC |
| Gasket | Klingersil 4324 (where fitted) | |||
| Enclosure | ABS | |||

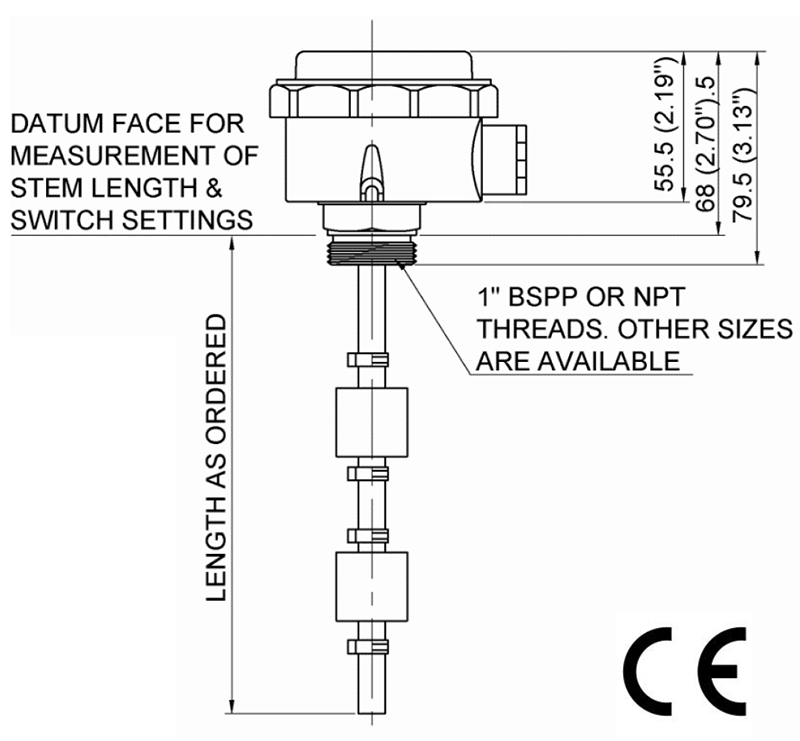

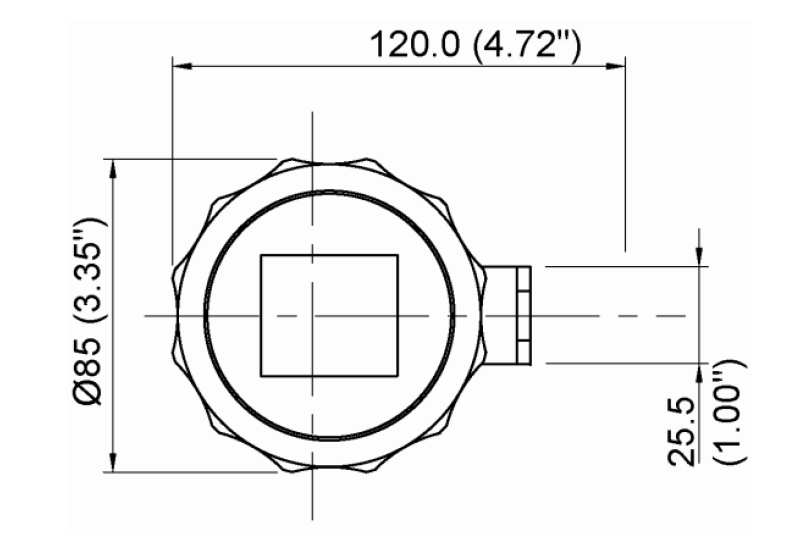

Dimensions:
Max. Length: 2250 mm Brass, 3000 mm SS, 1500 mm uPVC
Min. Length: 200 mm (4 Floats, 10 VA Reeds)
Min. Switch to Switch Dim: 40 mm (10 VA Reeds)
Min. Switch to End Dim: 40 mm (10 VA Reeds)
Min. Switch to Datum Dim: 40 mm (10 VA Reeds)
Fittings (typical):
Brass: 1” BSPP / BSPT / NPT, 1.5” BSPP / NPT
Stainless: 1” BSPP / BSPT / NPT, 1.5” BSPP / NPT
uPVC: 1” BSPP
Operation:
Max Number of Floats: 6 x N/O or N/C, 4 x C/O
Reed Contact Specification:
Reed Form N/O or N/C C/O
Voltage: ≤ 250 VAC/VDC ≤ 500 VAC/VDC
Current: ≤ 3 A* ≤ 3 A*
Power: ≤ 120 VA ≤ 100 VA
*1 A standard
Environmental Ratings:
Ingress (Enclosure): IP67
Operating Temperature: -20 ºC to +70 ºC
Vibration: 7.44 Grms, BSEN 60068-2-64:1993, Random Vibration
Connections:
Enclosure: Entry is M20 threaded for gland / conduit. Screw terminals for ≤ Ø2 mm / 3 mm2 conductors.
Flying Leads: Connectors / terminals as required.
